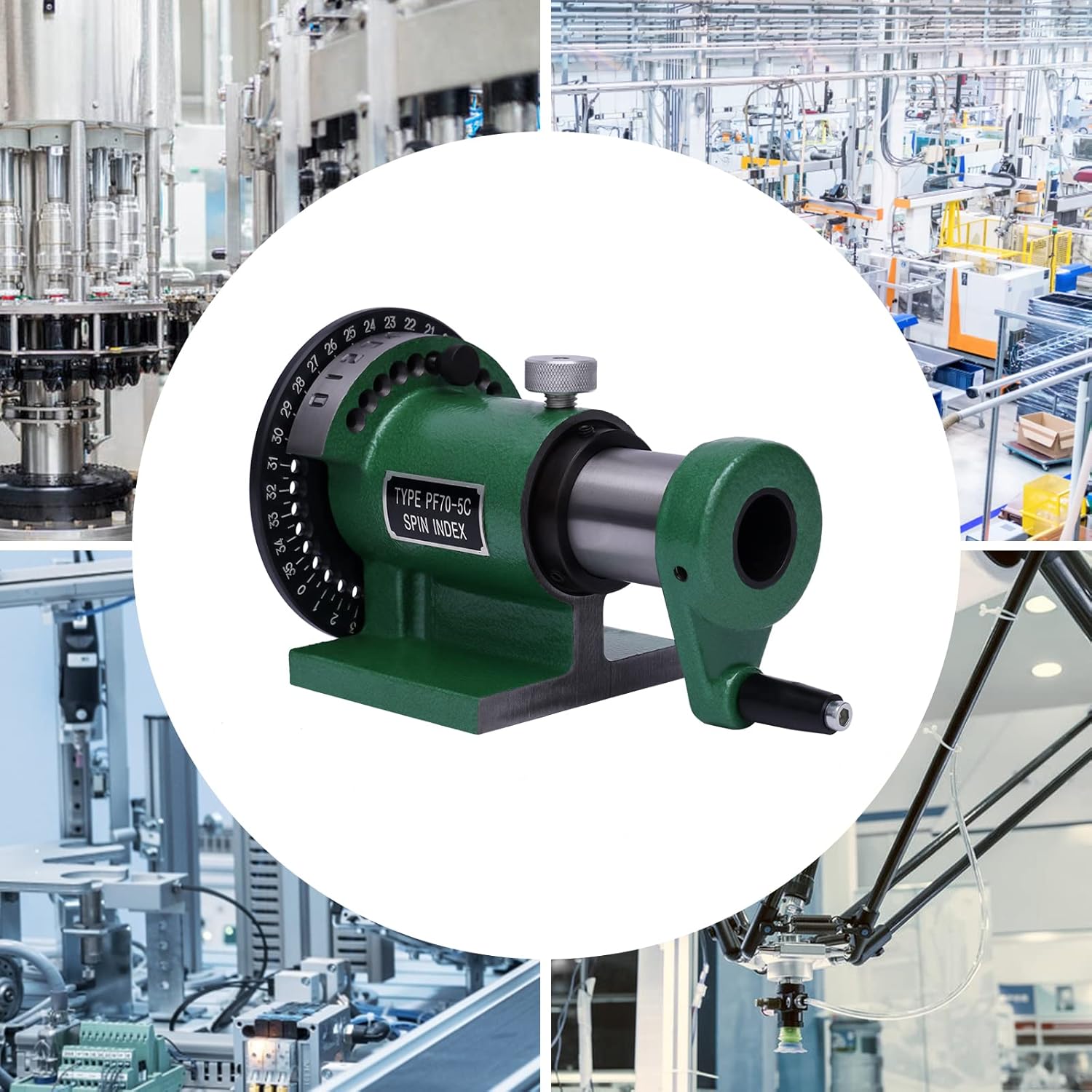

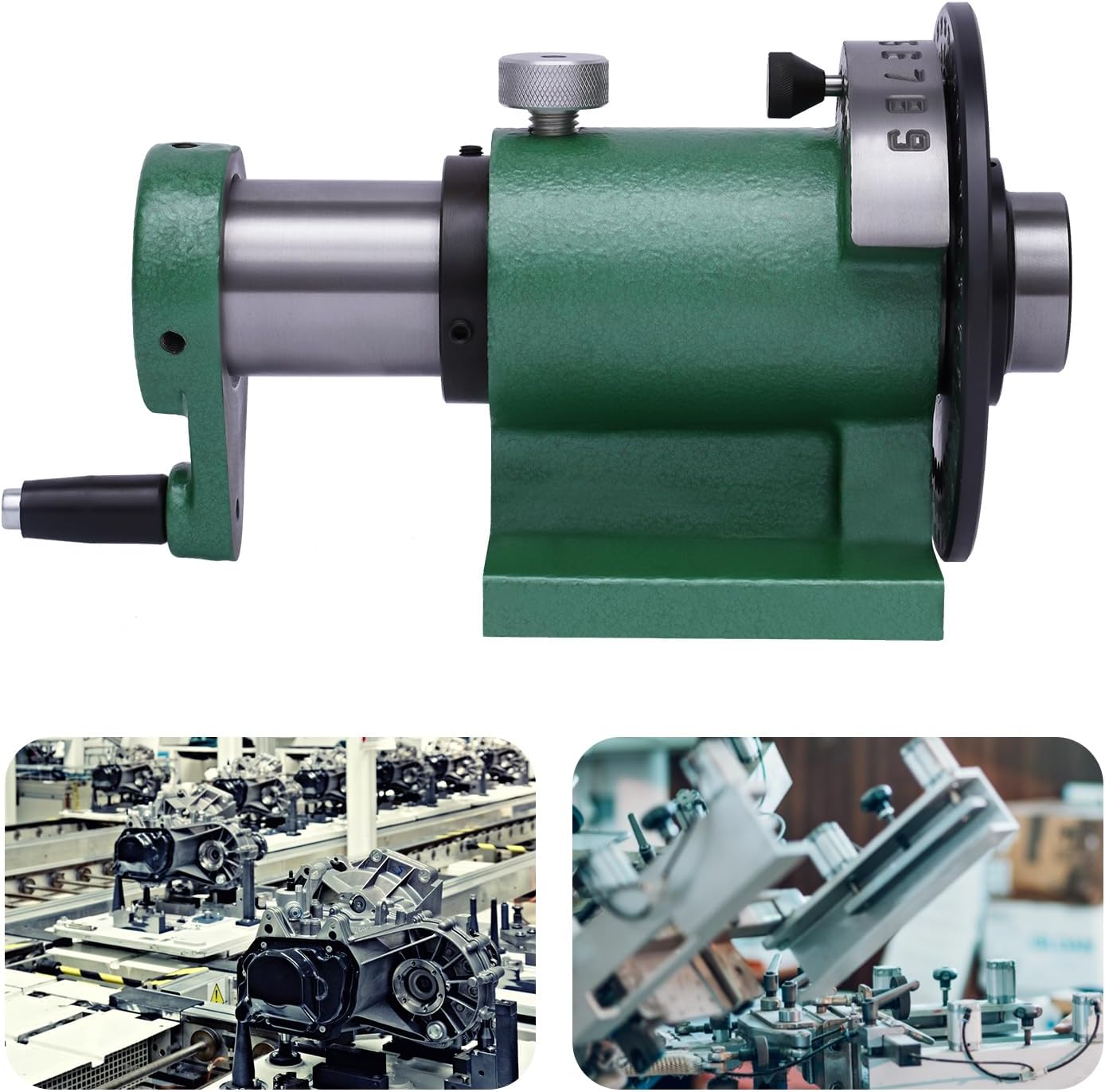

Spin Indexing Fixture, 1-1/8" Worktable Milling Spin Jig PF70-5C Spin Index ± 4' Accuracy Milling Jig Indexing Fixture Standard 5C Collet for Milling, Drilling, Fixture Boring

Description This spin indexing fixture is made of high-quality cast steel and is very strong and durable. It will help you to operate precisely and be your right-hand assistant for machining slots for milling cutters, cutting teeth for gears, curved milling slots, or drilling a bolt-hole circle around the circumference of a part. Details Smooth Surface: This spin indexing fixture is made of heavy-duty metal and finely polished, which shows a smooth surface. Therefore, it will not easily damage other materials and be easier to clean. Handle: This spin indexing fixture uses an ergonomic handle, so it becomes easier for you to grip. Specification Material: Cast Steel Color: Green Module: PF70-5C Indexing Accuracy: ± 4' Capacity for Standard 5C Collet: 1-1/8" Height of Center: 70mm/2-3/4" Spindle Travel: 2-1/16" Spindle Cone Radial Runout: 0.010mm/0.0004" The Radial Center of the Spindle is Bouncing (25mm/0.98" From the Spindle End): 0.03mm/0.0012" The Parallelism of the Center Line of the Spindle to the Bottom Surface: 0.02mm, 0.0008'' Product Size（L*H）: 23.6*13.4cm/9.29*5.28'' Package Size: 22*14*14cm/8.66*5.51*5.51'' Gross Weight: 5.8kg/12.79lbs Package Included 1*Spin Indexing Fixture 1*English Manual All Accessories for Use

• 📌【 VERTICAL AND HORIZONTAL DESIGN 】 It has both vertical and horizontal functions. When the vertical position of the table is used with the tail section, it is possible to perform circumferential cutting, indexing drilling, milling and more complex work.
• 📌【 HIGH PRECISION 】The spin indexing fixture is marked with a 360-degree scale on it, so you can accomplish precise rotation and reset. You just need to operate the control handle and adjust it to the desired position, which makes it easy and convenient to use.
• 📌【 POWERFUL CLAMPING FORCE 】This spin indexing fixture is controlled by a rotary screw. When you place the item inside and twist the screw tightly, it will hold the item firmly, making it easy for you to manipulate.
• 📌【 GREAT STABILITY 】 It has a wider base design, so it fits more closely to the countertop. It will give strong support to the long metal rods you want to handle, providing a more stable working condition.
• 📌【 APPLICATION 】This spin indexing fixture is very compact and portable. Therefore, if you want to use it on a different milling tool, you can easily move it to the machine you want. It is designed for milling, drilling, fixture boring and many common workshop applications.
